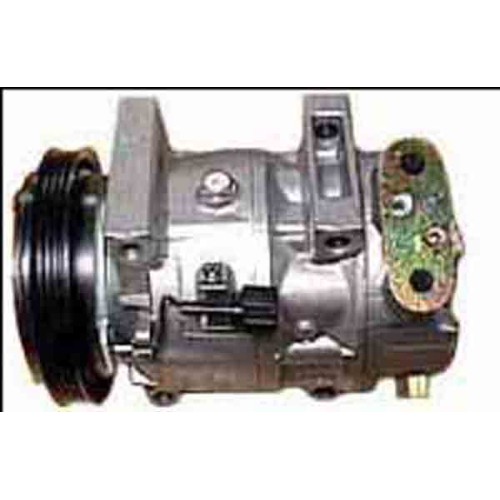

CWV615 WITH CLUTCH, REMAN.
4-BOSS MOUNT
UPPER MOUNT SPACING: 92mm (3.62in)
LOWER MOUNT SPACING: 92mm (3.62in)
BOSS WIDTH: 91mm (3.58in)
SUCTION: 18.75mm (0.74in) I.D. X 10mm (0.39in) DEEP (STEPPED)
DISCHARGE: 12.75mm (0.50in) I.D. X 10mm (0.39in) DEEP (STEPPED)
4-GROOVE
139.5mm (5.49in) OUTSIDE PULLEY O.D.
134.5mm (5.30in) PULLEY BELT O.D.
26.5mm (1.04in) M.D. BOSS FRONT TO BELT CENTER
20.5mm (0.81in) M.D. COIL MOUNT PLATE TO BELT CENTER
15mm (0.59in) M.D. COIL MOUNT PLATE TO FIRST GROOVE
